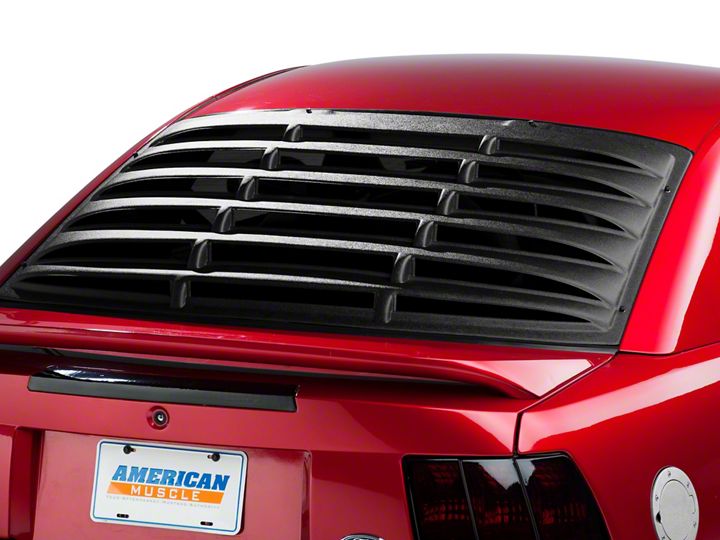

How to Install Rear Window Louvers - Textured ABS on Your 1994-2004 Mustang

Installation Time

1 hours

Tools Required

• Clean rag
• Soapy h2o
• Waterproof Silicone Sealant
• 3/8" Socket wrench
• Squeegee or Ten-Acto pocketknife
• Felt tip marker or grease pencil
• Blue painters tape -- > non necessary but recommended
• Machine paint and clear glaze -- > simply necessary if you are painting the Louvers

Store Parts in this Guide

• SpeedForm Rear Window Louvers; Textured ABS (94-04 Mustang Coupe)

Installation

Package Contents:

• ane-piece Rear Window Louver
• (2) Hinged metal mounting plates
• (4) Flat metal mounting plates
• (ane) Pocket-size, flat metallic mounting plate
• (5) Plastic thumb nuts
• (2) Plastic iii/eight" nuts
• (7) Metallic washers

**Note: all of the metallic plates should have the 3M adhesive tape attached to one side

Installation Instructions:

1. Mount all (vii) plates onto the Louver with the record side facing down towards the rear windshield. The (2) hinged plates attach to the meridian of the Louver, the pocket-size plate attaches to the bottom and the (4) others adhere to the sides. Utilize the washers on all (7) pieces. Utilise the (ii) 3/8" nuts on the top hinged plates and the other plastic thumb nuts on the remainder of the plates.

2. Now you need to wash the rear windshield of your Mustang. Make up a soapy water solution of warm water and mild dish lather. DO NOT Apply WINDEX or other similar window cleaning products! These chemicals will leave a residue on the glass that tin can impact the agglutinative. Employ a clean rag to wash the entire rear windshield and focus on the edges where the plates will mount.

three. Next, to make things easier, employ blue painters tape and loop a piece of tape under each plate then they will stick to the auto when you remove the louver later. This step is not necessary merely information technology volition make mark the location of each plate much easier.

four. Place the louver with the mounted plates onto the dorsum of your windshield. Position the louver onto your dorsum windshield and make sure the mounting plates are straight. NOTE: When you are making your final position cheque of the Louver on the rear windshield, make sure you have clearance to open your trunk. If you have the louver placed also low, information technology will scrape against the trunk lid.

five. Adjacent, carefully remove the nuts and washers from the louver and slowly the louver from the window, leaving the mounting plates stuck with blue record to the drinking glass. If the plates are moving around on you, use more painters record to secure each plate individually.

6. Place the louvers back onto the car to make sure your position is correct. You desire to get this right the first time before you apply the agglutinative record.

7. Take a washable felt tip marker or grease pencil and trace the location of each mounting plate onto the glass.

8. Afterwards tracing the location of each mounting plate, utilise your make clean rag to make sure that each location is make clean and dry. Remove the ruby-red bankroll from the tape on the mounting plates and carefully attach them to the glass in your marked locations. Make certain y'all line upwards the plates as you identify them onto the drinking glass; information technology is not a good idea to remove or movement the plates after you lot first place them on the glass. Press firmly on each plate for several seconds when you lot mount them to make sure you go a good seal.

9. After each mounting plate is secured to the glass, use the rag to remove any excess tracing marks that may be left behind.

10. Take your Waterproof Silicone sealant and place a small line of silicone along the edge of each mounting plate. This is to seal the edges of the record to prevent whatsoever possibility of water coming in contact with the adhesive. Use a small squeegee or Ten-Acto knife to button the silicone up confronting the tape and to remove any excess.

xi. Expect at least 24 hours for the mounting plates to set; do non install the louvers yet. The agglutinative tape and the silicone needs time to ready. Make certain the car is stored in a dry place and non in direct sunlight. Water and excessive heat can negatively affect the record's bonding procedure.

12. If you are going to paint the louvers, do so now when the mounting plates are setting. It is not necessary to paint them, but even painting them black and using a clear glaze will greatly improve the louvers appearance.

13. After you lot've waited at to the lowest degree 24 hours, check the mounting plates and brand sure they are all firmly secured to the drinking glass. You can also use an X-Acto knife to remove any extra silicone that may have seeped out.

14. Install the louvers onto the mounting plates and secure it with the washers and plastic nuts. Use your fingers to tighten the sides and the lesser nuts and use a 3/8" socket to tighten downwards the top (two) basics. Cheque all nuts twice for tightness. Note: do not over tighten the top nuts with the socket wrench; they are plastic nuts and can strip easily.

Your install is at present complete!

Installation Instructions written by AmericanMuscle customer Matt Wilkinson iv.twenty.12
